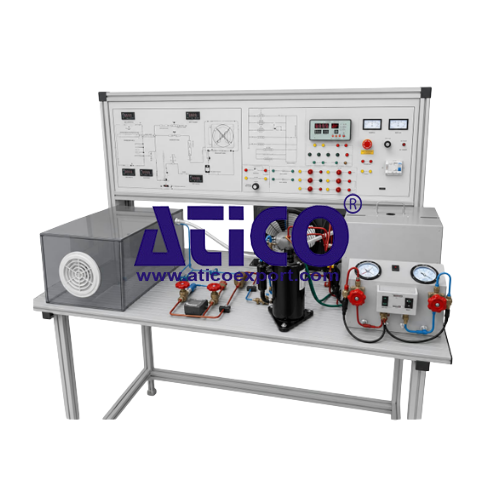

Air Conditioner Training System

quick overview :

Air Conditioner Training System

Make : ATICO

Country of Origin : INDIA

System Configuration: System includes a complete General Air Conditioning Training System with the following:

• Fully operational air-conditioning and humidity control training unit
• Integrated refrigeration system
• RS485 data acquisition system
• Refrigeration monitoring software
• Instrument control panel

The equipment will be factory assembled, fully piped and wired, tested, and ready for immediate laboratory operation.

Description: The General Air Conditioning Trainer is designed for vocational and technical training for the following experiments and activities:

• Refrigeration cycle operation
• Heating, cooling, humidification, and dehumidification processes
• Electrical control circuits for refrigeration systems
• Refrigeration performance measurement and analysis
• Computer-based data acquisition and monitoring

Refrigerant: R134a or equivalent environmentally acceptable refrigerant.

Mechanical Construction:

Workbench Structure: Rigid aluminum profile and steel frame construction

Dimensions: 1500 (L) × 750 (W) × 1650 (H) mm

Castor Wheels: Mounted on four (4) heavy-duty castor wheels:

• Two (2) with brakes
• Two (2) without brakes

Installation: Fully installed with refrigeration piping and electrical connections.

• Refrigeration circuit diagram and electrical schematic provided

Refrigeration Pipelines: Color-coded refrigeration pipelines:

• Red: High-pressure line
• Blue: Low-pressure line

Visibility and Monitoring:

• Sight glass for refrigerant observation
• Clearly labeled components
• Screen-printed panel for instructional purposes

Power Supply: 220 (±10%) VAC, 50 Hz, Single Phase

Rated Current: 16A (Minimum)

Leakage Circuit Breaker: 16A (Minimum)

Key Switch: Self-locking type

Emergency Stop Button: Self-locking type

Overload Protector: 10A (Minimum)

Indicator Lights: 5 Nos.

DC Power Supply:

• Output Voltage: 24V
• Output Current: 3A

Refrigeration & Air Treatment Components:

Sealed Compressor Power: 1 HP

Voltage: 220 (±10%) VAC, 50 Hz, Single Phase

Refrigerant: R134a or equivalent

Condenser (with Fan): Power Supply: 220 (±10%) VAC

Evaporator (with Fan): Power Supply: 220 (±10%) VAC

Humidification Units:

Primary Humidifier:

• Dimensions: 300 × 260 × 300 mm (approx.)
• Capacity: 2.3 Ltrs.

Secondary Humidifier: Capacity: 1 Ltr.

Heater: 220 (±10%) VAC, 50 Hz, Single Phase

Solenoid Valve: 220 (±10%) VAC, 50 Hz, Single Phase; Welded connection

Manual Valves:

• Flared-thread connection
• Pipe diameter: Φ6 mm (Minimum)
• Quantity: 3 Nos.

Control Panel Instrumentation:

Pressure Measurement:

High-Pressure Gauge Range: 0–3.8 MPa

Connection: Flared thread connection

Low-Pressure Gauge Range: 0–1.8 MPa

Control System: High and low pressure controllers

Pressure Transducer Sensors:

• Range: 0–2 MPa
• Output: 4–20 mA
• Quantity: 2 Nos.

Temperature Measurement:

Digital Temperature Displays: 4 Nos.

• Range: -50°C to +110°C
• Accuracy: ±0.5°C
• Resolution: 0.1°C
• NTC thermistor with protective sheath

Temperature Controller:

• Heating Output: 220 VAC
• Cooling Output: 220 VAC
• Humidification Output: 220 VAC

Electrical Monitoring:

Pointer Voltmeter: 0–250 VAC

Pointer Ammeter: 0–10A

Power Monitoring Module: 24V Supply

Analog Input Module: 24V Supply

Fan Speed Governor:

• Input: 220 VAC
• Output: 10–220 VAC (Adjustable)

Data Acquisition System:

• RS485 or standard communication
• Integrated data acquisition system
• Computer communication interface
• Computer-based schematic display
• Data logging capability
• Printing function

Displays and Records:

• Voltage
• Current
• Phase angle
• Frequency
• Power
• High pressure
• Low pressure
• Time

Refrigeration Monitoring Software:

• Licensed software
• Real-time system parameter display
• Data recording and storage
• Graphical system diagram display
• Printing of recorded data
• RS485 communication integration

Software Compatibility: Compatible with standard Windows-based PC systems.

Functional Capabilities: The system supports the following laboratory exercises:

• Identification of air-conditioning system components
• Observation of refrigerant states
• Heating, cooling, humidification, and dehumidification studies
• Determination of:
  • Refrigeration effect
  • Work input
  • Actual cycle power
  • Theoretical cycle power
  • Relative cycle power
  • Refrigeration capacity
  • Equipment efficiency
• Computer-based data acquisition and analysis

Warranty: 12 Months

Quality Assurance: ISO 9001 and CE or equivalent certification shall be provided.
