Compressor Training System

quick overview :

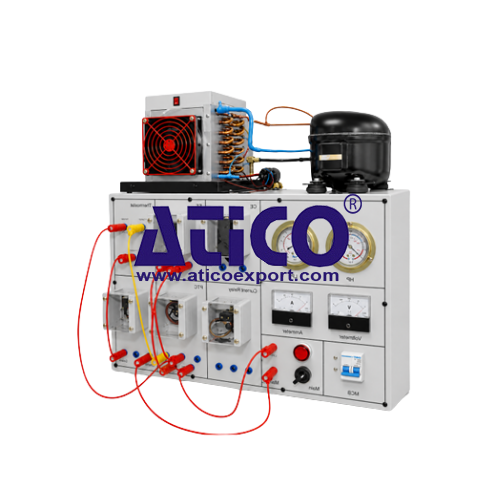

Compressor Training System

Make : ATICO

Country of Origin : INDIA

Item: Compressor Training System

System Configuration: System includes a complete Compressor Training System, including:

• Fully-operational Refrigeration / Dehumidifier Training Unit

• Integrated Instrumentation and Control Panel

• RFID Power Management System

• Standard Accessories and Tools

• Documentation and Experiment Manuals

Description: The Compressor Training System is a fully operational refrigeration and dehumidification training unit designed to:

• Simulate dehumidifier workflow

• Demonstrate refrigeration cycle operation

• Enable compressor start-up training

• Facilitate refrigerant charging practice

• Support performance evaluation and Mollier diagram plotting

The system includes condenser and evaporator fan coil units arranged to simulate an air dehumidification process.

Refrigerant: R134a or equivalent environmentally acceptable refrigerant.

Mechanical Construction:

Training Bench Structure: Constructed from Aluminum Profile and Sheet-metal Frame

Dimensions: 750 (W) × 1000 (L) × 1550 (H) mm

Castor Wheels: Mounted on four (4) heavy-duty castor wheels (2 with brake locks, 2 without brakes)

• Fully piped and electrically connected

• All components clearly labeled

Demonstration Panel: Includes the following:

• Printed refrigeration circuit diagram

• Electrical diagram with test points

• Color-coded refrigeration piping (red/blue)

• Embedded high- and low-pressure gauges

• Transparent sight glass for refrigerant monitoring

Power Supply: 220 (±10%) VAC, 50 Hz, Single Phase

Rated Current: 16A (min.)

Leakage Circuit Breaker: 16A (min.)

Key Switch: Self-locking type

Emergency Stop Button: Self-locking type

Overload Protector: 5A (min.)

Indicator Lights: 5 Nos.

Safety Plug Connections: Provided for all components

Refrigeration System Components:

Motor Power Compressor: 1/3 HP

Voltage: 220 VAC, 50 Hz, Single Phase

Compatibility: Compatible with R134a or equivalent refrigerant

Condenser (Fan Coil Type):

• Refrigerant Ports: 1/4 inch inlet and outlet

• Integrated installation with evaporator

Evaporator (Fan Coil Type): Refrigerant Ports: 1/4 inch inlet and outlet

Throttling Device: Capillary tube type

Filter-Drier: Service port size: 1/4 inch

Service Valve: Low-pressure service port: 1/4 inch

Manual Valves:

• Flare-threaded connection

• Pipe diameter: 1/4 inch (2 Nos.)

Sight Glass: Welded type

Instrumentation and Measurement Devices:

Low-Pressure Gauge: -30 to 260 psi / -0.1 to 1.8 MPa

High-Pressure Gauge: -30 to 550 psi / -0.1 to 3.8 MPa

Analog Voltmeter: 0–250 V

Analog Ammeter: 0–10 A

Digital Temperature Display: -50°C to +110°C

Accuracy: ±0.5°C

Resolution: 0.1°C

PT-100 / NTC Sheathed Probe: 4 Nos.

Fan Voltage: 220 VAC, 50 Hz

Fan Size: 120 × 120 mm

Component Mounting: All instruments are permanently mounted and clearly labeled.

RFID Power Management System:

• Operating frequency: 13.56 MHz (High Frequency)

• Communication interface: RS485 or standard

• OLED display for RFID card number, data, and error codes

• Customizable display settings via software

• Audible status prompts

• LED indicators

• Data verification capability (OLED read/write comparison)

• Command-based verification

• Parameter configuration and function testing software

• Communication protocols: ISO-15693, ModBus TCP, ModBus RTU

• RFID System enables controlled activation via authorized card authentication

Measuring Instruments: Dual compound pressure gauge set (R404A, R407C, R134a, R22)

AC Clamp Meter:

• AC voltage: 600V

• DC voltage: 600V

• AC current: 600A

• Capacitance: 60000 μF

• Resistance: 60 MΩ

• Diode test function

Digital Anemometer:

Wind Speed Range: 0.3 ~ 45 m/s

Resolution: 0.001 m/s

Air Temperature Range: 0.0 ~ 45°C

Accuracy: ±2°C

Display: Backlit LCD display

Tool Kit:

• 2 Ltr oxygen cylinder

• Fuel gas cylinder

• Welding torch

• Toolbox

• Vacuum pump (1 Ltr.)

• R134a refrigerant or equivalent (1 unit)

• Neon test lamp (12–250V)

• Experiment manual (1 copy)

Scope of Experimentation: The system supports the following training programs:

• Circuit component inspection

• PTC start-up training

• Current-mode start-up training

• Refrigeration system operation

• Dehumidifying air-conditioning principles

• Mollier diagram drawing

• Refrigeration performance assessment

• Refrigerant charging and servicing practice

Warranty: 12 months

Quality Assurance: ISO 9001 and CE or equivalent certificates provided.
