Single-Split Type Cooling / Heating Air Conditioner

quick overview :

Single-Split Type Cooling / Heating Air Conditioner

Make : ATICO

Country of Origin : INDIA

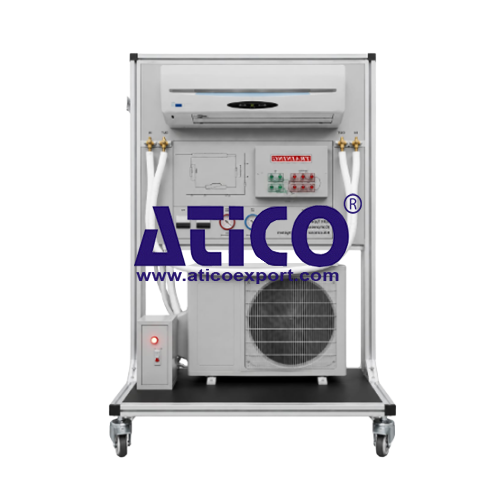

System Configuration: System includes a complete Single-Split Type Cooling / Heating Air Conditioner Training Device suitable for Technical and Vocational Education and Training (TVET) laboratories.

The Equipment Comprises:

• Fully operational split-type air conditioning system
• Mobile training platform
• Indoor unit
• Outdoor unit
• Instrumentation panel
• Fault simulation system
• Standard accessories
• Instructional documentation

Purpose: The training device enables the following exercises:

• Demonstration of installation procedures of split-type air conditioners
• Study of refrigeration cycle and system components
• Operation in both cooling and heating modes
• Practical maintenance and troubleshooting exercises
• Measurement and performance analysis
• System fault diagnosis training

Applicable Standards: The equipment complies with:

• IEC electrical safety standards
• ISO refrigeration system standards
• Local electrical and laboratory safety regulations
• Environmental regulations for refrigerant handling

All supplied refrigerants comply with applicable international environmental standards.

System Description: The Split Air Conditioner Training Device consists of:

• 1 x Indoor wall-mounted evaporator unit
• 1 x Outdoor condenser unit (variable frequency type)
• Integrated refrigeration piping with service access
• Instrumentation Panel
• Fault Simulation System

Both indoor and outdoor units are mounted on a common Aluminum structural training frame with heavy-duty casters.

Operation Modes:

• Cooling Mode
• Heating Mode (Reverse Cycle Operation)

Mechanical Construction:

Training Platform: Rigid aluminum bracket structure

Dimensions: 1200 (L) × 1100 (W) × 1800 (H) mm (approx.)

Castor Wheels: Four (4) heavy-duty castor wheels:

• Two (2) with brakes
• Two (2) without brakes

Training Platform Features:

• Clear layout for instructional visibility
• Components clearly labeled
• Refrigeration circuit diagram provided

Refrigerant: R410A or approved equivalent

Outdoor Unit (Condenser Section):

Compressor Type: Inverter compressor

Power Supply: 220 VAC

Refrigerant: R410A or equivalent

Condenser Capacity: 4.1 kW

Cooling Method: Forced Air

Evaporator Capacity: 3.5 kW

Cooling Method: Direct Expansion

Refrigeration Controller: Capillary tube type

Filter Drier: Welded type

Three-Way Inspection Valves:

• 3/8 inch Gas Line
• 1/2 inch Liquid Line

Indoor Unit (Wall-Mounted Evaporator):

• Wall-mounted type
• Integrated temperature controller
• Cooling and heating operation

Refrigeration Circuit Accessories:

• Observation sight glass (Welded type)
• Manual valves (2 Nos., Flared connection Φ6 mm)
• High-pressure gauge range: 0–800 psi (0–55 kg/cm²)
• Low-pressure gauge range: -30 to 500 psi (0–35 kg/cm²)
• High-pressure and low-pressure controller
• Flared thread connections Φ6 mm

Power Supply: 220 (±10%) VAC, 50 Hz, Single Phase

Rated Current: 16A (min.)

Instrument Control Panel: The control panel includes:

Pointer Voltmeter Range: 0–250 V

Pointer Ammeter Range: 0–10 A

Switch: On/Off Control Switch

Residual Current Circuit Breaker: 16A (Minimum)

Overload Protector: 10A (Minimum)

Features:

• Self-locking Key Start Switch
• Self-locking Emergency Stop Button
• Indicator Lights (5 Nos.)
• Digital Temperature Displays (4 Nos.)

Temperature Measurement: Digital Temperature Display Units

Supply Voltage: 220 (±10%) VAC

Measuring Range: -50°C to +110°C

Accuracy: ±0.5°C

Resolution: 0.1°C

Sensor: NTC with Protective Sheath

Quantity: 4 Sets

Fault Simulation System: The equipment includes:

• Independent Fault Setting Units (10 Nos.)
• Fault troubleshooting and testing modules

The system enables simulation of common air-conditioning faults for instructional purposes.

Instrumentation & Training Accessories:

• Dual Composite Pressure Gauge Set (Compatible with R410A, R404A, R407C, R134a, R22)
• Wrench Set (7 Pcs.)

Digital Anemometer:

• Wind Speed: 0.3–45 m/s
• Temperature Measurement Function

Flaring and Expanding Tool Kit:

• Metric: 6–19 mm
• Imperial: 1/4"–3/4"

Toolbox Including:

• 2 Ltr. Oxygen Cylinder
• Gas cylinder
• Welding torch
• Ultrasonic Leak Detector
• Two-Stage Vacuum Pump
• Neon Test Pen (12–250 VAC)
• R410A Refrigerant
• Practical Training Manual

Functional Capabilities: The training system supports:

• Identification of split air-conditioner components
• Installation training
• Refrigeration cycle observation
• Experimental data measurement and acquisition
• Application of enthalpy-humidity (psychrometric) charts
• System fault diagnosis
• Performance calculation
• Analytical discussion and reporting

Safety Features: The system includes:

• Residual Current Protection
• Overload Protection
• Emergency Stop Device
• Clearly Labeled Service Valves
• Secure Refrigerant Connections
• Safe Handling procedures for refrigerant charging and recovery

All exposed rotating and live electrical parts shall be properly guarded.

Warranty: 12 Months

Quality Assurance: ISO 9001 and CE or equivalent certification shall be provided.
