Conveyor Belt Module

quick overview :

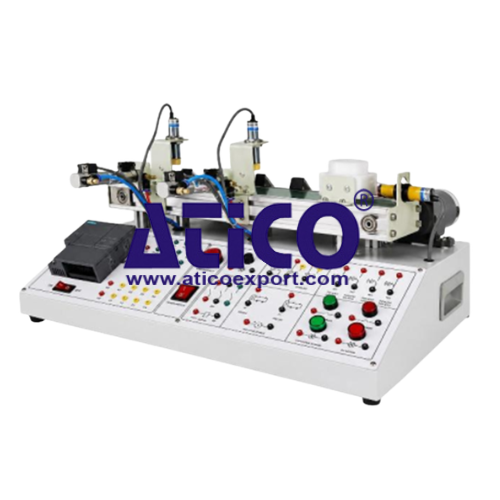

Conveyor Belt Module

Make : ATICO

Country of Origin : INDIA

TECHNICALDETAILS :-

• Item: Conveyor Belt Module

• Description: A modular conveyor-based automation training system designed to demonstrate and practice PLC control, sensor integration, pneumatic actuation, and industrial communication. The system enables implementation of sorting, positioning, and process automation tasks.

• Mechanical System:

  • Flat belt conveyor with industrial-grade belt material.

  • Modular structural frame (metal/aluminum profile construction).

  • Adjustable belt alignment and tensioning mechanism.

  • Integrated workpiece handling and sorting stations.

  • Multiple output bins/positions for classification.

• Drive & Motion Control:

  • Electric drive motor (AC or DC geared motor).

  • Speed control via controller or inverter (optional).

  • Position feedback using rotary encoder or equivalent.

  • Capability for: Continuous motion.

  • Indexed positioning.

  • Speed variation.

• Control System (PLC-Based):

  • Industrial Programmable Logic Controller (PLC)

  • Digital and analog I/O support

  • Expandable I/O modules

  • Supports: Sequential logic control

  • Timer/counter operations

  • Position-based control

  • Interlocking and safety logic

• Sensor Integration:

  • System supports integration of multiple industrial sensors, such as:

  • Proximity sensors (inductive/capacitive)

  • Photoelectric sensors

  • Color detection sensors

  • Position/limit sensors

  • Identification systems (e.g., RFID or equivalent)

• Used for:

  • Object detection

  • Material identification

  • Position tracking

  • Sorting decision input

• Pneumatic System:

  • Pneumatic actuators (cylinders) for sorting/diversion

  • Solenoid valves (electrically controlled)

  • Air preparation unit (filter, regulator)

  • Adjustable operating pressure range

• Electrical & Power System:

  • Standard AC power input (single-phase or three-phase)

  • Low-voltage DC supply for control circuits

  • Built-in protection:

  • Overload protection

  • Short-circuit protection

  • Leakage/ground fault protection

  • Emergency stop functionality

• Human-Machine Interface (HMI):

  • Push buttons and selector switches

  • Status indicators (LED/signals)

  • Emergency stop control

  • Optional: Touchscreen HMI

  • SCADA/software-based monitoring

• Communication & Networking:

  • Industrial communication capability (fieldbus/industrial Ethernet)

  • PLC-to-device communication support

  • PLC-to-PC communication support

  • Integration with monitoring/configuration software

• Physical Characteristics:

  • Floor-standing or desktop modular structure

  • Compact footprint suitable for lab environments

  • Durable industrial construction

  • Easy access for wiring and maintenance

• Training & Functional Capabilities:

  • The system supports training and experimentation in:

  • PLC programming and debugging

  • Sensor application and calibration

  • Motor control and speed regulation

  • Pneumatic system control

  • Automated sorting and material handling

• Warranty: 12 Months (from date of installation)
