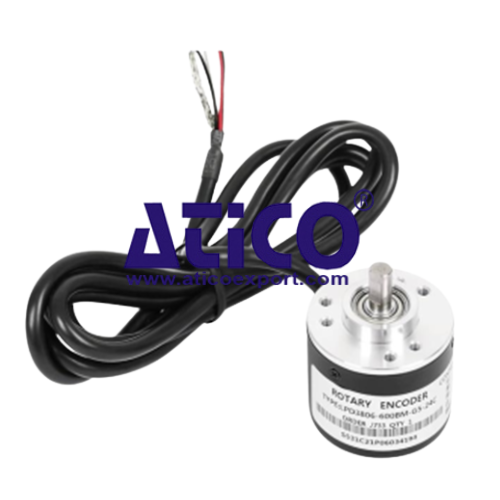

Encoder with Cable, Max. Speed : 6000 rpm; 5–24V DC

quick overview :

Encoder with Cable, Max. Speed : 6000 rpm; 5–24V DC

Make : ATICO

Country of Origin : INDIA

TECHNICAL DETAILS :

• Item: Encoder with Cable, Max. Speed : 6000 rpm; 5–24V DC

• Output Type: NPN and PNP Open Collector

• Resolution: 1000

• Maximum Speed: 6000 rpm

• Power Supply: 5–24V DC

• Electrical Connection: Pre-wired Cable

• Starting Torque: 0.98 mN-m

• Rotor Inertia: 1 × 10⁻⁶ kg·m²
  3 × 10⁻⁷ kg·m² @ 600 P/R

• Mounting Type: Servo Mounting Bracket

• Housing Material: ABS

• Dimensions: 40 mm Diameter

• Certification: CE Certified

• Quantity: 5 Nos.

• Warranty: 12 months from the date of supply / installation
